Apple iPhone 11 Pro Max Radiation Levels

Head SAR (Cellular Only)

Radiation Levels	Head	Body	Hot Spot
Cellular Only	1.16 W/kg	1.17 W/kg	1.17 W/kg
Wi-Fi + Cellular	1.14 W/kg	1.53 W/kg	1.53 W/kg

Add to Compare Compare

Apple iPhone 11 Pro Max SAR Level Summary:

The cellular transmission SAR values for the Apple iPhone 11 Pro Max (FCC ID BCG-E3306A) are 1.16 W/kg (watts per kilogram) at the head and 1.17 W/kg when worn on the body. The hotspot/Airplay SAR level is 1.17 W/kg. The simultaneous transmission SAR values for iPhone 11 Pro Max (cellular plus Wi-Fi) is 1.14 W/kg at the head, 1.53 W/kg when worn on the body, and 1.53 W/kg when used as a hotspot simultaneously with other transmitters active.

iPhone 11 Pro Max

Select a phone to compare iPhone 11 Pro Max SAR levels to other popular phones

Cell Phone Usage & Radiation Exposure

Apple iPhone 11 Pro Max Safety Tip:

How Much Will Turning Off Wi-Fi and Bluetooth Reduce Radiation?

This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Apple iPhone 11 Pro Max can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off Wi-Fi and Bluetooth transmitters, you can lower the RF radiation exposure to your head by 1.8%, and you can lower exposure to the body by 23.5%, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use! Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to 30.8% according to the FCC SAR report for device number BCG-E3306A.

Apple iPhone 11 Pro Max SAR Levels

Comparison of SAR levels between cellular-only and simultaneous exposure
Cellular Only	(% DIFF)	Wi-Fi + Cellular
1.16 W/kg	HEAD 1.8%	1.14 W/kg
1.17 W/kg	BODY 23.5%	1.53 W/kg
1.17 W/kg	HOTSPOT 30.8%	1.53 W/kg

Key Takeaways

Children vs Adults: Children have higher SAR levels due to thinner skulls and developing tissues, making them more vulnerable to radiation.
Wi-Fi Impact: Simultaneous use of cellular and Wi-Fi transmission increases SAR levels for all age groups.
Precautionary Measures: Using radiation protection products like QuantaCase can help mitigate these risks, especially for younger users.

By understanding these differences, parents and guardians can make informed decisions to better protect their children from excessive microwave radiation exposure, emphasizing the need for safer smartphone usage practices and protective accessories like QuantaCase.

Children vs Adults Radiation Exposure

The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.

The SAR values for the iphone-11-pro-max (FCC ID BCG-E3306A) are as follows:

1.16 W/kg when held at the head with cellular transmission only
1.17 W/kg when worn on the body with cellular transmission only
1.17 W/kg when used as a Hotspot or Airplay
1.14 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission
1.53 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission
1.53 when used as a Hotspot simultaneously with other transmitters active.

SAR Levels
Overview
QuantaCase™

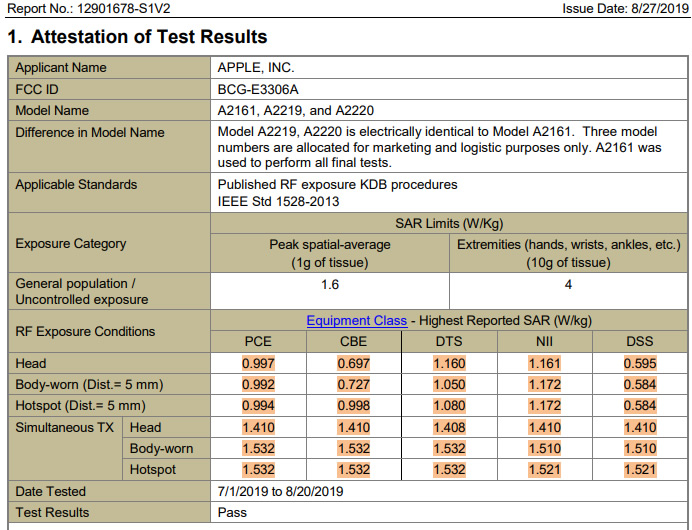

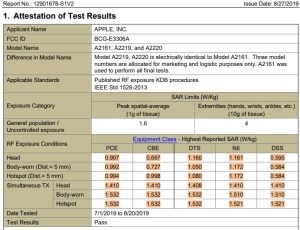

FCC SAR Report Image

Apple iPhone 11 Pro Max - SAR Levels

FCC SAR Levels

FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
27 August 2019
FCC ID The FCC ID is the code used to register a device for FCC compliance
BCG-E3306A
FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
FCC Specific Absorption Rate (SAR) Report For Manufacturer Submitted Model
US SAR Ratings USA Legal Limit is 1.6 W/kg
USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
1.16 W/Kg
Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
1.17 W/Kg
Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
1.17 W/Kg
Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
1.53 W/Kg
Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
1.14 W/Kg
Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
1.53 W/Kg
Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
1.53 W/Kg

EU SAR Level

EU SAR Ratings
European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
Head SAR Level
N/A
Body SAR Level
N/A

[view_rss sarhead=’1.16′ sarbody=’1.17′ sarhotspot =’1.17′ sarsimhead=’1.39′ sarsimbody=’1.52′ sarsimhotspot =’1.52′]

Apple iPhone 11 Pro Max SAR test reports filed with the Federal Communications Commission FCCID BCG-E3306A— the Specific Absorption Rate (SAR) Apple iPhone 11 Pro Max is Head: 1.16 watts per kilogram (w/kg) at your head, and 1.17 W/kg when worn on your body. The Apple iPhone 11 Pro Max hotspot SAR is 1.17 W/kg and its SAR for simultaneous transmission (cellular plus Wi-Fi) is 1.53 W/kg when used as a hotspot simultaneously with other transmitters active.

Versions:
A2218 (Global market)
A2161 (USA, Canada, Puerto Rico, U.S. Virgin Islands)
A2220 (China, Hong Kong)

Network	Technology	GSM / CDMA / HSPA / EVDO / LTE
	2G bands	GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM) – for China
		CDMA 800 / 1900
	3G bands	HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
		CDMA2000 1xEV-DO
	4G bands	LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 11(1500), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 21(1500), 25(1900), 26(850), 28(700), 29(700), 30(2300), 32(1500), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 46, 48, 66(1700/2100) – A2218
		LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 14(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 29(700), 30(2300), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 46, 48, 66(1700/2100), 71(600) – A2161
		LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 14(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 29(700), 30(2300), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 46, 48, 66(1700/2100), 71(600) – A2220
	Speed	HSPA 42.2/5.76 Mbps, LTE-A 1.6 Gbps DL, EV-DO Rev.A 3.1 Mbps

Launch	Announced	2019, September
Launch	Status	Coming soon. Exp. release 2019, September

Body	Dimensions	158 x 77.8 x 8.1 mm (6.22 x 3.06 x 0.32 in)
	Weight	226 g (7.97 oz)
	Build	Front/back glass, stainless steel frame
	SIM	Single SIM (Nano-SIM and/or Electronic SIM card) or Dual SIM (Nano-SIM, dual stand-by) – for China
		IP68 dust/water resistant (up to 4m for 30 mins) Apple Pay (Visa, MasterCard, AMEX certified)

Display	Type	Super Retina XDR OLED capacitive touchscreen, 16M colors
	Size	6.5 inches, 102.9 cm² (~83.7% screen-to-body ratio)
	Resolution	1242 x 2688 pixels, 19.5:9 ratio (~458 ppi density)
	Protection	Scratch-resistant glass, oleophobic coating
		800 nits Dolby Vision HDR10 Wide color gamut True-tone 120 Hz touch-sensing

Platform	OS	iOS 13
Platform	Chipset	Apple A13 Bionic (7 nm+)

Memory	Card slot	No
	Internal	64GB 4GB RAM, 256GB 4GB RAM, 512GB 4GB RAM

Main Camera	Triple	12 MP, f/1.8, 26mm (wide), 1/2.55″, 1.4m, PDAF, OIS 12 MP, f/2.0, 52mm (telephoto), 1/3.4″, 1.0m, PDAF, OIS, 2x optical zoom 12 MP, f/2.4, 13mm (ultrawide)
	Features	Quad-LED dual-tone flash, HDR (photo/panorama)
	Video	2160p@24/30/60fps, 1080p@30/60/120/240fps, HDR, stereo sound rec.

Selfie camera	Dual	12 MP, f/2.2 TOF 3D camera
	Features	HDR
	Video	2160p@24/30/60fps, 1080p@30/60/120fps, gyro-EIS

Sound	Loudspeaker	Yes, with stereo speakers
	3.5mm jack	No
		Active noise cancellation with dedicated mic Dolby Atmos Dolby Digital Plus

Comms	WLAN	Wi-Fi 802.11 a/b/g/n/ac/ax, dual-band, hotspot
	Bluetooth	5.0, A2DP, LE
	GPS	Yes, with A-GPS, GLONASS, GALILEO, QZSS
	NFC	Yes
	Radio	No
	USB	2.0, proprietary reversible connector

Features	Sensors	Face ID, accelerometer, gyro, proximity, compass, barometer
		Siri natural language commands and dictation

Battery		Non-removable Li-Ion 3500 mAh battery
	Charging	Fast battery charging 18W: 50% in 30 min USB Power Delivery 2.0 Qi wireless charging
	Talk time	Up to 20 h (multimedia)
	Music play	Up to 80 h

Misc	Colors	Space Gray, Silver, Gold, Midnight Green
	Models	A2218, A2161, A2220
	Price	About 1250 EUR
