Google Pixel 3 Radiation Levels
[add_sar_ranking_update]
Pixel 3
| Select a phone to compare Pixel 3 SAR levels to other popular phones |
| Cell Phone Usage & Radiation Exposure | ||||||||||||
Google Pixel 3 Safety Tip:How Much Will Turning Off Wi-Fi and Bluetooth Reduce Radiation?This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Google Pixel 3 can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off Wi-Fi and Bluetooth transmitters, you can lower the RF radiation exposure to your head by %, and you can lower exposure to the body by %, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use! Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to % according to the FCC SAR report for device number A4RG013A. Google Pixel 3 SAR Levels
|
Key Takeaways
- Children vs Adults: Children have higher SAR levels due to thinner skulls and developing tissues, making them more vulnerable to radiation.
- Wi-Fi Impact: Simultaneous use of cellular and Wi-Fi transmission increases SAR levels for all age groups.
- Precautionary Measures: Using radiation protection products like QuantaCase can help mitigate these risks, especially for younger users.
By understanding these differences, parents and guardians can make informed decisions to better protect their children from excessive microwave radiation exposure, emphasizing the need for safer smartphone usage practices and protective accessories like QuantaCase.
| Children vs Adults Radiation Exposure |
The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.
The SAR values for the pixel-3 (FCC ID A4RG013A) are as follows:
- 1.34 W/kg when held at the head with cellular transmission only
- 1.34 W/kg when worn on the body with cellular transmission only
- 0 W/kg when used as a Hotspot or Airplay
- 0 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission
- 0 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission
- when used as a Hotspot simultaneously with other transmitters active.
Google Pixel 3 - SAR Levels
FCC SAR Levels
- FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law. 31 August 2018
- FCC ID The FCC ID is the code used to register a device for FCC compliance A4RG013A
- FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
- US SAR Ratings USA Legal Limit is 1.6 W/kg USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
- Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active 1.34 W/kg
- Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active 1.34 W/kg
- Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot 1.59 W/kg
- Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active, 1.34 W/kg
EU SAR Level
- EU SAR Ratings European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
- Head SAR Level N/A
- Body SAR Level N/A
The SAR standard was developed to protect users only from the acute effects of the heat generated by microwave radiation (i.e., the thermal effect). The SAR limit does not protect users from the non-thermal effects of cell phone radiation.
The maximum reported SAR Levels for a Pixel 3 (FCCID A4RG013A) are as follows: Head 1.34 W/kg, Body 1.34 W/kg, Simultaneous Transmission 1.59 W/kg and Wireless Router 1.34 W/kg
According to Google, the Pixel 3 has been tested and meets applicable limits for radio frequency (RF) exposure.
Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram in countries that set the limit averaged over 1 gram of tissue and 2.0 watts per kilogram in countries that set the limit averaged over 10 grams of tissue. During testing, the Pixel phones are set to their highest transmission levels and placed in positions that simulate use against the head, with no separation, and near the body, with 10mm separation.
To reduce exposure to RF energy, use a hands-free option, such as the built-in speakerphone, the supplied headphones, or other similar accessories. Carry the Pixel 3 at least 10mm away from your body to ensure exposure levels remain at or below the as-tested levels. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified.
Although this device has been tested to determine SAR in each band of operation, not all bands are available in all areas. Bands are dependent on your service provider’s wireless and roaming networks.
| Network | Technology | GSM / CDMA / HSPA / EVDO / LTE |
|---|---|---|
| 2G bands | GSM 850 / 900 / 1800 / 1900 | |
| CDMA 800 / 1900 | ||
| 3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 | |
| CDMA2000 1xEV-DO | ||
| 4G bands | LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 29(700), 32(1500), 38(2600), 40(2300), 41(2500), 66(1700/2100), 71(600) | |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (5CA) Cat16 1024/75 Mbps | |
| GPRS | Yes | |
| EDGE | Yes |
| Launch | Announced | 2018, October |
|---|---|---|
| Status | Coming soon. Exp. release 2018, October |
| Body | Dimensions | 145.6 x 68.2 x 7.9 mm (5.73 x 2.69 x 0.31 in) |
|---|---|---|
| Weight | 148 g (5.22 oz) | |
| Build | Front/back glass (Gorilla Glass 5), aluminum frame | |
| SIM | Nano-SIM card & eSIM | |
| – IP68 dust/water resistant (up to 1.5m for 30 mins) |
| Display | Type | P-OLED capacitive touchscreen, 16M colors |
|---|---|---|
| Size | 5.5 inches, 76.7 cm2 (~77.2% screen-to-body ratio) | |
| Resolution | 1080 x 2160 pixels, 18:9 ratio (~443 ppi density) | |
| Multitouch | Yes | |
| Protection | Corning Gorilla Glass 5 | |
| – Always-on display – 100% DCI-P3 coverage – HDR |
| Platform | OS | Android 9.0 (Pie) |
|---|---|---|
| Chipset | Qualcomm SDM845 Snapdragon 845 (10 nm) | |
| CPU | Octa-core (4×2.5 GHz Kryo 385 Gold & 4×1.6 GHz Kryo 385 Silver) | |
| GPU | Adreno 630 |
| Memory | Card slot | No |
|---|---|---|
| Internal | 64/128 GB, 4 GB RAM |
| Main Camera | Single | 12.2 MP, f/1.8, 28mm (wide), 1/2.55″, 1.4m, OIS, dual pixel PDAF |
|---|---|---|
| Features | Dual-LED flash, Auto-HDR, panorama | |
| Video | 2160p@30fps, 1080p@30/60/120fps, 720p@240fps, 1080p@30fps (gyro-EIS) |
| Selfie camera | Dual | 8 MP, f/1.8, 28mm (wide), PDAF 8 MP, f/2.2, 19mm (ultrawide), no AF |
|---|---|---|
| Features | Auto-HDR | |
| Video | 1080p@30fps |
| Sound | Alert types | Vibration; MP3, WAV ringtones |
|---|---|---|
| Loudspeaker | Yes, with stereo speakers | |
| 3.5mm jack | No | |
| – Active noise cancellation with dedicated mic – Type-C to 3.5 mm headphone jack adapter |
| Comms | WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot |
|---|---|---|
| Bluetooth | 5.0, A2DP, LE, aptX HD | |
| GPS | Yes, with A-GPS, GLONASS, BDS, GALILEO | |
| NFC | Yes | |
| Radio | No | |
| USB | 3.1, Type-C 1.0 reversible connector (PowerDelivery 2.0) |
| Features | Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer |
|---|---|---|
| Messaging | SMS(threaded view), MMS, Email, Push Email, IM | |
| Browser | HTML5 | |
| – Fast battery charging 9V/2A 18W – QI wireless charging – MP4/H.265 player – MP3/WAV/eAAC+ player – Photo/video editor – Document editor |
| Battery | Non-removable Li-Ion 2915 mAh battery |
|---|
| Misc | Colors | Clearly White, Just Black, Not Pink |
|---|---|---|
| Price | About 860 EUR |
Google Pixel 3 - QuantaCase™

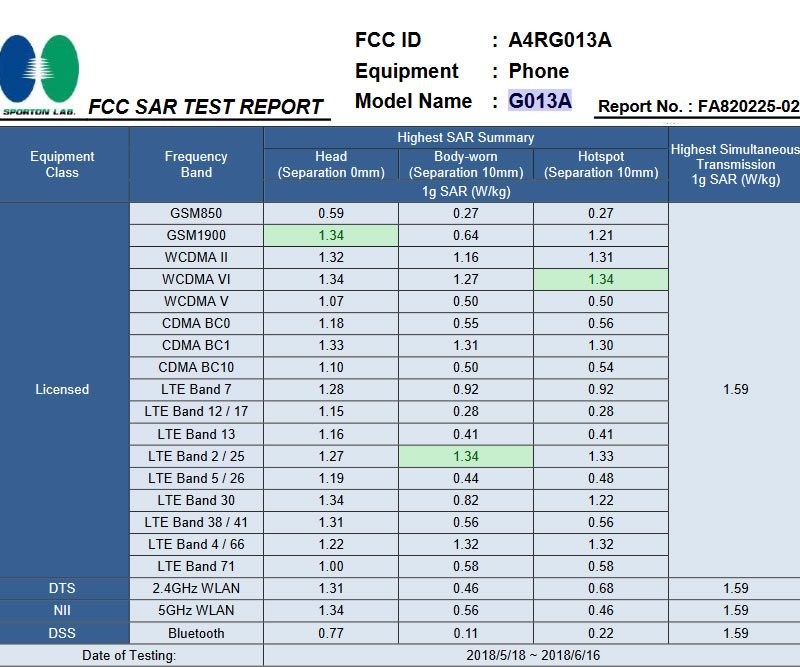

Google Pixel 3 - FCC SAR Report Image
