Samsung Galaxy S10 Lite * RF SAFE® Radio Frequency Safe

Samsung Galaxy S10 Lite Radiation Levels

Head SAR (Cellular Only)

Radiation Levels	Head	Body	Hot Spot
Cellular Only	0.69 W/kg	0.93 W/kg	1.07 W/kg
Wi-Fi + Cellular	1.06 W/kg	1.36 W/kg	1.58 W/kg

Add to Compare Compare

Samsung Galaxy S10 Lite SAR Level Summary:

The cellular transmission SAR values for the Samsung Galaxy S10 Lite (FCC ID A3LSMG770F) are 0.69 W/kg (watts per kilogram) at the head and 0.93 W/kg when worn on the body. The hotspot/Airplay SAR level is 1.07 W/kg. The simultaneous transmission SAR values for Galaxy S10 LITE (cellular plus Wi-Fi) is 1.06 W/kg at the head, 1.36 W/kg when worn on the body, and 1.58 W/kg when used as a hotspot simultaneously with other transmitters active.

Galaxy S10 Lite

Select a phone to compare Galaxy S10 Lite SAR levels to other popular phones

Cell Phone Usage & Radiation Exposure

Samsung Galaxy S10 Lite Safety Tip:

How Much Will Turning Off Wi-Fi and Bluetooth Reduce Radiation?

This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Samsung Galaxy S10 Lite can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off Wi-Fi and Bluetooth transmitters, you can lower the RF radiation exposure to your head by 35.2%, and you can lower exposure to the body by 31.5%, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use! Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to 47.4% according to the FCC SAR report for device number A3LSMG770F.

Samsung Galaxy S10 Lite SAR Levels

Comparison of SAR levels between cellular-only and simultaneous exposure
Cellular Only	(% DIFF)	Wi-Fi + Cellular
0.69 W/kg	HEAD 35.2%	1.064 W/kg
0.93 W/kg	BODY 31.5%	1.358 W/kg
1.07 W/kg	HOTSPOT 47.4%	1.577 W/kg

Key Takeaways

Children vs Adults: Children have higher SAR levels due to thinner skulls and developing tissues, making them more vulnerable to radiation.
Wi-Fi Impact: Simultaneous use of cellular and Wi-Fi transmission increases SAR levels for all age groups.
Precautionary Measures: Using radiation protection products like QuantaCase can help mitigate these risks, especially for younger users.

By understanding these differences, parents and guardians can make informed decisions to better protect their children from excessive microwave radiation exposure, emphasizing the need for safer smartphone usage practices and protective accessories like QuantaCase.

Children vs Adults Radiation Exposure

The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.

The SAR values for the galaxy-s10-lite (FCC ID A3LSMG770F) are as follows:

0.69 W/kg when held at the head with cellular transmission only
0.93 W/kg when worn on the body with cellular transmission only
1.07 W/kg when used as a Hotspot or Airplay
1.06 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission
1.36 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission
1.58 when used as a Hotspot simultaneously with other transmitters active.

SAR Levels
Overview
QuantaCase™

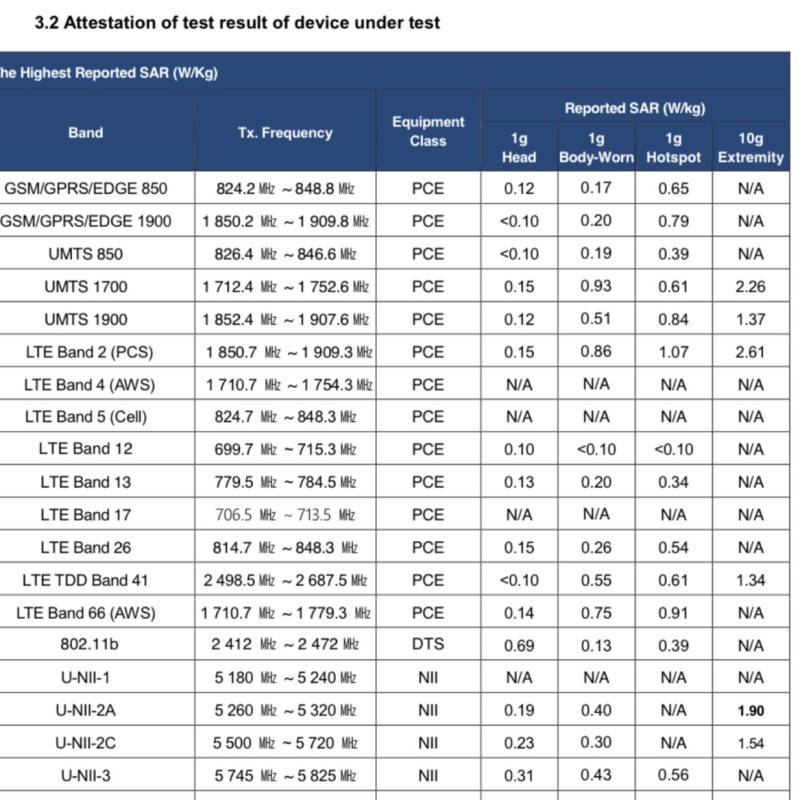

FCC SAR Report Image

Samsung Galaxy S10 Lite - SAR Levels

FCC SAR Levels

FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
16 May 2019
FCC ID The FCC ID is the code used to register a device for FCC compliance
A3LSMG770F
FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
FCC Specific Absorption Rate (SAR) Report For Manufacturer Submitted Model
US SAR Ratings USA Legal Limit is 1.6 W/kg
USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
0.69 W/kg
Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
0.93 W/kg
Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
1.07 W/kg
Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
1.577 W/kg
Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
1.064 W/kg
Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
1.358 W/kg
Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
1.577 W/kg

EU SAR Level

EU SAR Ratings
EU Legal Limit is 2.0 W/kg
Head SAR Level
0.49 W/kg (head)
Body SAR Level
1.52 W/kg (body)

Versions: SM-G770F/DS (Global); SM-G770F/DSM (Russia, India)

Network	Technology	GSM / HSPA / LTE
	2G bands	GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM model only)
	3G bands	HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
	4G bands	LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 20(800), 26(850), 28(700), 38(2600), 40(2300), 41(2500), 66(1700/2100)
	Speed	HSPA 42.2/5.76 Mbps, LTE-A

Launch	Announced	2020, January 3
Launch	Status	Available. Released 2020, February 3

Body	Dimensions	162.5 x 75.6 x 8.1 mm (6.40 x 2.98 x 0.32 in)
	Weight	186 g (6.56 oz)
	SIM	Single SIM (Nano-SIM) or Dual SIM (Nano-SIM, dual stand-by)

Display	Type	Super AMOLED Plus capacitive touchscreen, 16M colors
	Size	6.7 inches, 107.8 cm² (~87.8% screen-to-body ratio)
	Resolution	1080 x 2400 pixels, 20:9 ratio (~394 ppi density)
		Always-on display HDR10+

Platform	OS	Android 10.0; One UI 2
	Chipset	Qualcomm SM8150 Snapdragon 855 (7 nm)
	CPU	Octa-core (1×2.84 GHz Kryo 485 & 3×2.42 GHz Kryo 485 & 4×1.78 GHz Kryo 485)
	GPU	Adreno 640

Memory	Card slot	microSDXC (uses shared SIM slot)
	Internal	128GB 6GB RAM, 128GB 8GB RAM, 512GB 8GB RAM
		UFS 2.1

Main Camera	Triple	48 MP, f/2.0, 26mm (wide), 1/2.0″, 0.8m, PDAF, Super Steady OIS 12 MP, f/2.2, 12mm (ultrawide) 5 MP, f/2.4, 25mm (macro), 1/5.0″, 1.12m
	Features	LED flash, panorama, HDR
	Video	2160p@30/60fps, 1080p@30/60/240fps; gyro-EIS

Selfie camera	Single	32 MP, f/2.2, 25mm (wide), 1/2.8″, 0.8m
	Features	HDR
	Video	1080p@30fps

Sound	Loudspeaker	Yes
	3.5mm jack	No

Comms	WLAN	Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
	Bluetooth	5.0, A2DP, LE
	GPS	Yes, with A-GPS, GLONASS, GALILEO, BDS
	NFC	Yes
	USB	2.0, Type-C 1.0 reversible connector

Features	Sensors	Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
		ANT+

Battery		Non-removable Li-Po 4500 mAh battery
	Charging	Fast battery charging 45W

Misc	Colors	Prism White, Prism Black, Prism Blue
	Models	SM-G770F, SM-G770F/DS, SM-G770F/DSM
	SAR	0.69 W/kg (head) 0.93 W/kg (body)
	SAR EU	0.49 W/kg (head) 1.52 W/kg (body)
	Price	€ 600.17 / $ 559.95 / £ 518.08 / ₹ 39,999

Tests	Performance	AnTuTu: 370751 (v7), 459497 (v8) GeekBench: 11151 (v4.4), 2732 (v5.1) GFXBench: 56fps (ES 3.1 onscreen)
	Display	Contrast ratio: Infinite (nominal)
	Camera	Photo / Video
	Audio quality	Noise -93.7dB / Crosstalk -94.7dB
	Battery life	Endurance rating 110h
