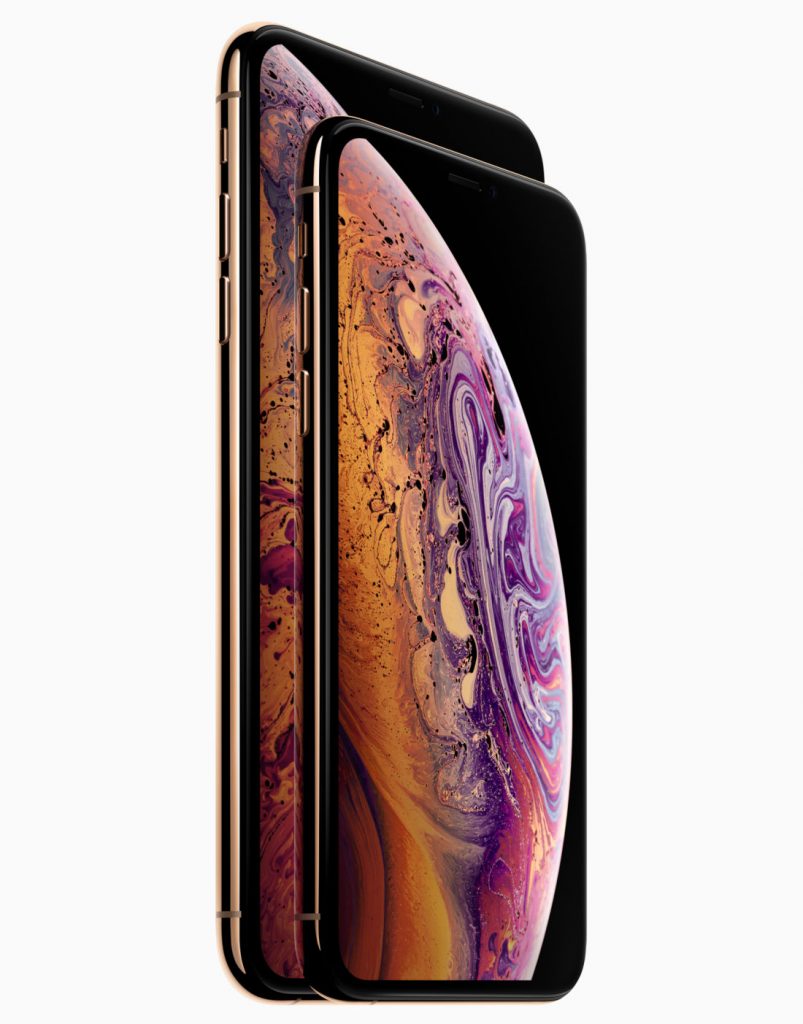

Apple iPhone XS MAX
Screen Size: 6.5 inches
Dimensions: 157.5 x 77.4 x 7.7 mm (6.20 x 3.05 x 0.30 in)
Buy: RF Safe® iPhone XS Max QuantaCase™ EMF Anti-Radiation Phone Case
Apple iPhone XS MAX SAR Level Summary:
The cellular transmission SAR values for the Apple iPhone XS MAX (FCC ID BCG-E3219A) are
1.16 W/kg at the head and
1.17 W/kg when worn on the body.
The hotspot/Airplay SAR level is 1.17 W/kg.
Simultaneous transmission SAR values (cellular + Wi-Fi) include:
1.39 W/kg at the head,
1.52 W/kg on the body,
and 1.52 W/kg when used as a hotspot.
SAR Ranking
| Test | Value | Rank | % of Limit |
|---|---|---|---|
| Head (Cellular) | 1.16 W/kg | Check Rank | 72.50% |
| Body (Cellular) | 1.17 W/kg | Check Rank | 73.13% |
| Hotspot (Cellular) | 1.17 W/kg | Check Rank | 73.13% |
| Head (WiFi+Cell) | 1.39 W/kg | Check Rank | 86.88% |
| Body (WiFi+Cell) | 1.52 W/kg | Check Rank | 95.00% |
| Hotspot (WiFi+Cell) | 1.52 W/kg | Check Rank | 95.00% |
Specifications
ℹ️ General
- ℹ️ Phone: Apple iPhone XS MAX
- ℹ️ Technology: GSM / CDMA / HSPA / EVDO / LTE
- ℹ️ Announced: 2018-09-12 22:16:24
- ℹ️ Status: Available. Released 2018, September 21
- ℹ️ Price: About 570 EUR
- ℹ️ Model Names: A1921, A2101, A2102, A2104, Phone11,6
- ℹ️ General Review:
📱 Display
- 📱 Type: Super Retina OLED, HDR10, Dolby Vision, 625 nits (HBM)
- 📱 Size: 6.5 inches, 102.9 cm2 (~84.4% screen-to-body ratio)
- 📱 Resolution: 1242 x 2688 pixels, 19.5:9 ratio (~458 ppi density)
- 📱 Protection: Scratch-resistant glass
- 📱 Features: 3D Touch
- 📱 Display Test: Contrast ratio: Infinite (nominal), 4.516 (sunlight)
- 📱 Display Review:
📷 Camera
- 📷 Main Camera: Dual Camera: 12 MP, f/1.8, 26mm (wide), 1/2.55", 1.4m, dual pixel PDAF, OIS
12 MP, f/2.4, 52mm (telephoto), 1/3.4", 1.0m, PDAF, OIS, 2x optical zoom - 📷 Main Features: Quad-LED dual-tone flash, HDR (photo/panorama)
- 📷 Video: 4K@24/30/60fps, 1080p@30/60/120/240fps, HDR, stereo sound rec.
- 📷 Selfie Camera: Single Camera: 7 MP, f/2.2, 32mm (standard)
SL 3D, (depth/biometrics sensor) - 📷 Selfie Camera Features: HDR
- 📷 Selfie Camera Video: 1080p@30/60fps, gyro-EIS
- 📷 Camera Review:
🔋 Battery
- 🔋 Type: Li-Ion 3174 mAh, non-removable (12.08 Wh)
- 🔋 Battery Test: Endurance rating 79h
- 🔋 Charging: 15W wired, PD2.0, 50% in 30 min (advertised)
Wireless (Qi) - 🔋 Battery Review:
⚙️ Hardware
- ⚙️ Operating System: iOS 12, upgradable to iOS 16.3
- ⚙️ Chipset: Apple A12 Bionic (7 nm)
- ⚙️ CPU: Hexa-core (2x2.5 GHz Vortex + 4x1.6 GHz Tempest)
- ⚙️ GPU: Apple GPU (4-core graphics)
- ⚙️ Performance: AnTuTu: 353210 (v7)
GeekBench: 11432 (v4.4)
GFXBench: 47fps (ES 3.1 onscreen) - ⚙️ Internal Storage: 64GB 4GB RAM, 256GB 4GB RAM, 512GB 4GB RAM
NVMe - ⚙️ Card Slot: No
- ⚙️ Sensors: Face ID, accelerometer, gyro, proximity, compass, barometer
- ⚙️ Hardware Review:
🛜 Connectivity
- 🛜 Wi-fi: Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot
- 🛜 Bluetooth: 5.0, A2DP, LE
- 🛜 USB: Lightning, USB 2.0
- 🛜 GPS: GPS, GLONASS, GALILEO, QZSS
- 🛜 NFC: Yes
- 🛜 Radio: No
- 🛜 Connectivity Review:
🔊 Sound
- 🔊 Loudspeaker: Yes, with stereo speakers
- 🔊 3.5mm Jack: No
- 🔊 Loudspeaker Test: Voice 70dB / Noise 74dB / Ring 84dB
- 🔊 Sound Review:
🎨 Design
- 🎨 Type: Bar
- 🎨 Dimensions: 157.5 x 77.4 x 7.7 mm (6.20 x 3.05 x 0.30 in)
- 🎨 Weight: 208 g (7.34 oz)
- 🎨 Colors: Space Gray, Silver, Gold
- 🎨 Build: Glass front (Corning-made glass), glass back (Corning-made glass), stainless steel frame
- 🎨 Design Review:
🗼 Network
- 🗼 Speed: HSPA 42.2/5.76 Mbps, LTE-A (4CA) Cat16 1024/150 Mbps, EV-DO Rev.A 3.1 Mbps
- 🗼 SIM: Nano-SIM and eSIM or Dual SIM (Nano-SIM, dual stand-by) - for China
IP68 dust/water resistant (up to 2m for 30 min)
Apple Pay (Visa, MasterCard, AMEX certified) - 🗼 2G Network: GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM) - for China
CDMA 800 / 1900 - 🗼 3G Network: HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO - 🗼 4G Network: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 46, 66 - A2101
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 29, 30, 32, 34, 38, 39, 40, 41, 46, 66, 71 - A1921, A2104 - 🗼 5G Network:
- 🗼 Network Review:
⚠️ FCC SAR Levels
- ⚠️ FCC Approval Date: 12-09-2018
- ⚠️ FCC ID: BCG-E3219A
- ⚠️ FCC Report Link: 9-12-2018 FCC Specific Absorption Rate (SAR) Report For Manufacturer Submitted Model Apple iPhone XS MAX
- ⚠️ US SAR Ratings: USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
- ⚠️ Head SAR Level: 1.164 W/kg
- ⚠️ Body SAR Level: 1.171 W/kg
- ⚠️ Product Specific Use: 1.171 W/kg
- ⚠️ Simultaneous Transmission: 1.518 W/kg
- ⚠️ Simultaneous Head: 1.392 W/kg
- ⚠️ Simultaneous Body: 1.518 W/kg
- ⚠️ Hotspot SAR: 1.518 W/kg
